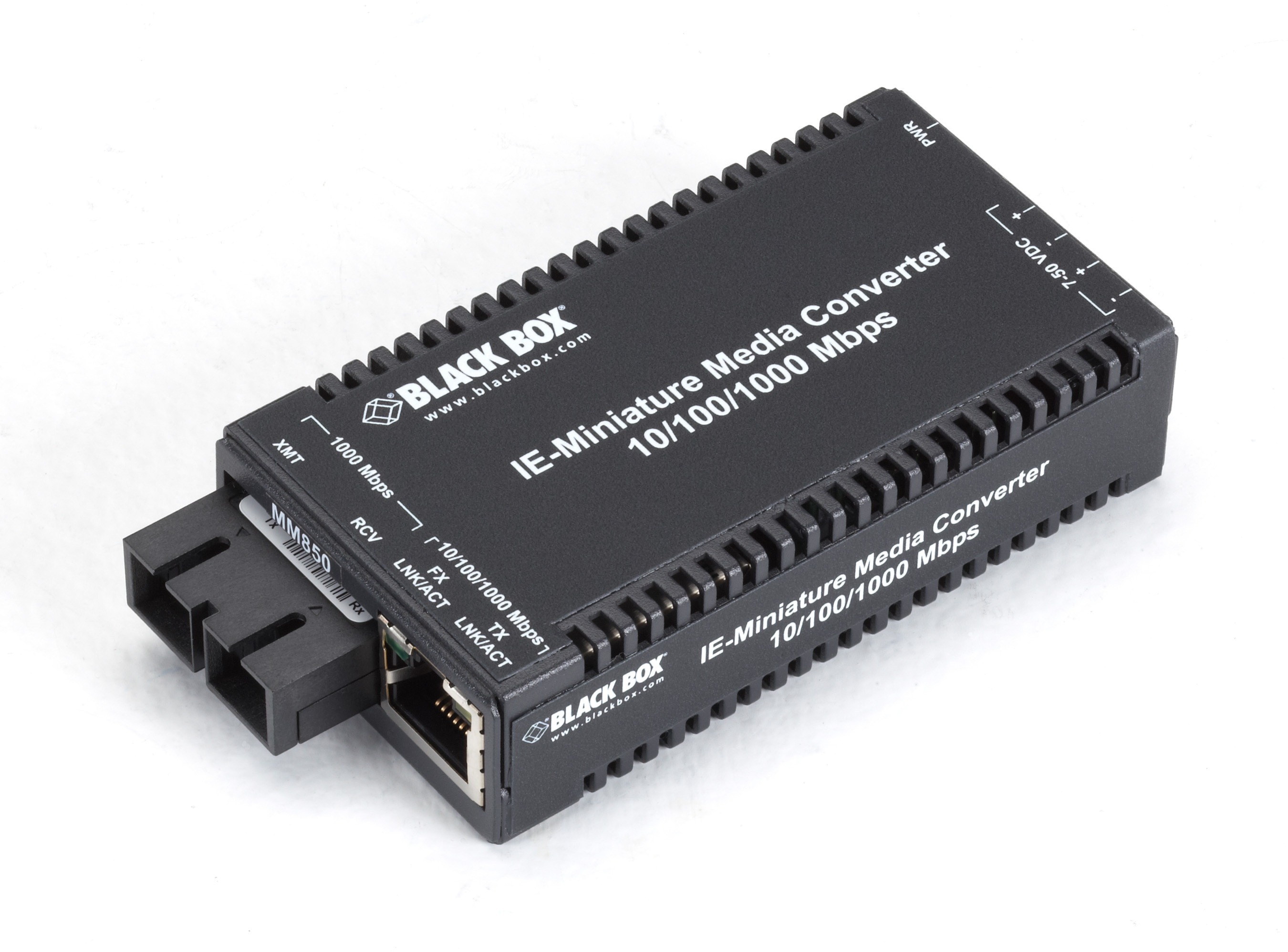

MultiPower Miniature Gigabit Ethernet (1000-Mbps) Industrial Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps, Hardened Temperature

Tough Fiber Media Converters with redundant power, Link Fault Pass-Through (LFPT), and rugged design for harsh industrial environments

Product Features

Compliant to EN62368
Supports link fault passthrough for troubleshooting
Can be used as a standalone device or DIN rail mounted and includes clips for mounting on DIN rails
Auto MDI/MDI-X means you never need to worry about what kind of cable to use
IEEE 802.3af compliant PoE-PD

Built Tough
Fiber Industrial MultiPower Media Converters are designed for demanding environments including factory automation, building systems, utilities (power and water), and oil/gas facilities. Typical applications include LAN extension, fiber mode conversion, and Ethernet speed conversion. These converters come in a compact metal housing, suitable for standalone use or integration into a high-density rack mount chassis.

Efficient Copper-to-Fiber Conversion
Seamlessly and transparently convert 10/100/1000 Mbps copper to 1000 Mbps fiber. These models require one or two strands of fiber. As Layer 2 media converters, they automatically detect and adjust to the copper side speed, offering a true plug-and-play experience.

Reliable Power Redundancy
Multiple power options can be used simultaneously to maximize redundancy, ensuring mission-critical applications stay operational. If one power source fails, the remaining sources will continue to supply power seamlessly, keeping the converter running.

Link Fault Pass-Through (LFPT) Support
LFPT functionality can be enabled or disabled via a DIP switch on the unit. This feature combines TX LinkLoss (for twisted pair/copper interfaces) and FX LinkLoss (for fiber interfaces) between paired IMC Networks media converters. When enabled, LFPT passes a link fault through the device at each segment. When disabled, faults are no longer passed through making it easier for troubleshooting to find where the issue is. If a link fails on one interface, the media converter will bring down the link on its partner and pass the fault to the next interface.

Hardened and Rugged
Industrial MultiPower Media Converters are built for harsh industrial settings. When powered by DC, they support an extended temperature range of -13 to +167°F (-25 to +75°C), making them suitable for a wide range of industrial applications.

1 Year Double Diamond™ Warranty (Standard)

Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box.

Our Double Diamond Warranty* protects your Black Box® brand products from manufacturing and/or material defects.

The LGC320A-R5 comes with a standard 1 Year Double Diamond Warranty*. During the warranty period, Black Box will repair or replace your damaged equipment at NO CHARGE!*

What’s more, we also have a 30-day return policy on most products. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package to receive a full refund.** Click here to find your local sales office to obtain a Return Authorization.

Extended Double Diamond Warranty.

Extend the warranty on select products or protect eligible previously purchased Black Box® brand items for an additional year - at just 10% of the original purchase price or for three years for only 20% of the purchase price.

* Warranty subject to certain exclusions and limitations. Click here to view our full terms and conditions.

** Returns contingent upon specific exclusions and limitations. Click here to view our full return policy.

Details
