#KVXLCHDP-200

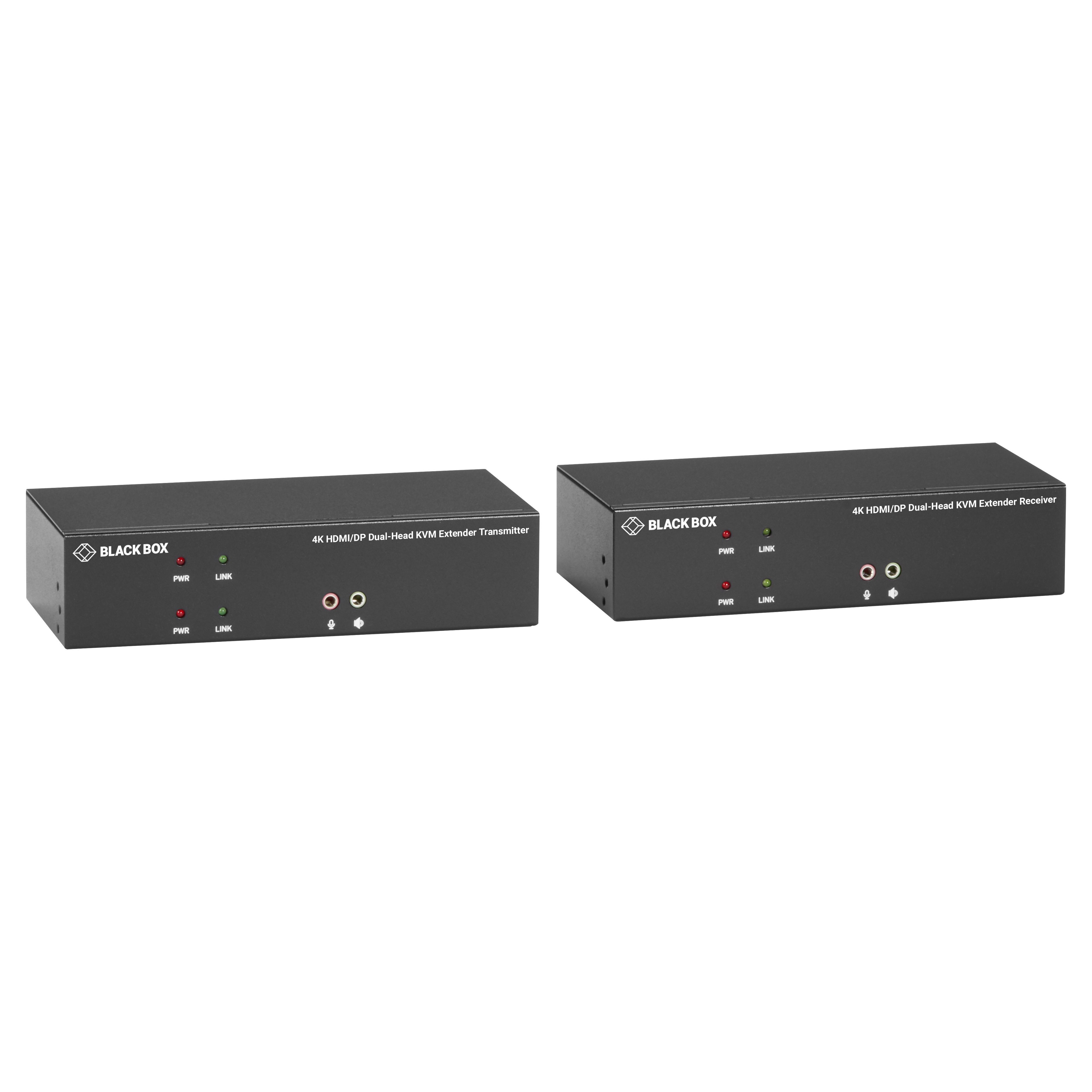

KVX Series KVM Extender Kit Over CATx - Dual-Monitor, HDMI/DisplayPort 4K30, USB 2.0, Audio, Serial, Local Video Out
Extend KVM signals up to 100m over CATx cable.
Product Features
- DisplayPort or HDMI Dual Head transmission up to 100m over standard CATx cable
- Local and remote units connect at distances of up to 330 feet (100m) using two CAT5e cables
- Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
The KVX HDMI/DisplayPort Dual Head KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). This extender also supports 4K video. PC connection cables are included with this product, making it a solution that is ready to use right out of the box.
Unlike any other product on the market, the KVX HDMI/DP Dual Head KVM Extender features mixed input to support HDMI or DisplayPort sources and output to dual HDMI displays.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX Dual Head is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Dual Head is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console, making it an efficient and flexible solution.
KVX Dual Head also includes local video, allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs.
This extender is TAA compliant and backed by free lifetime technical support. KVX Dual Head is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust, dirt, and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data, such as financial and personal information, safe in a heavily secured data center while still allowing remote access to users.

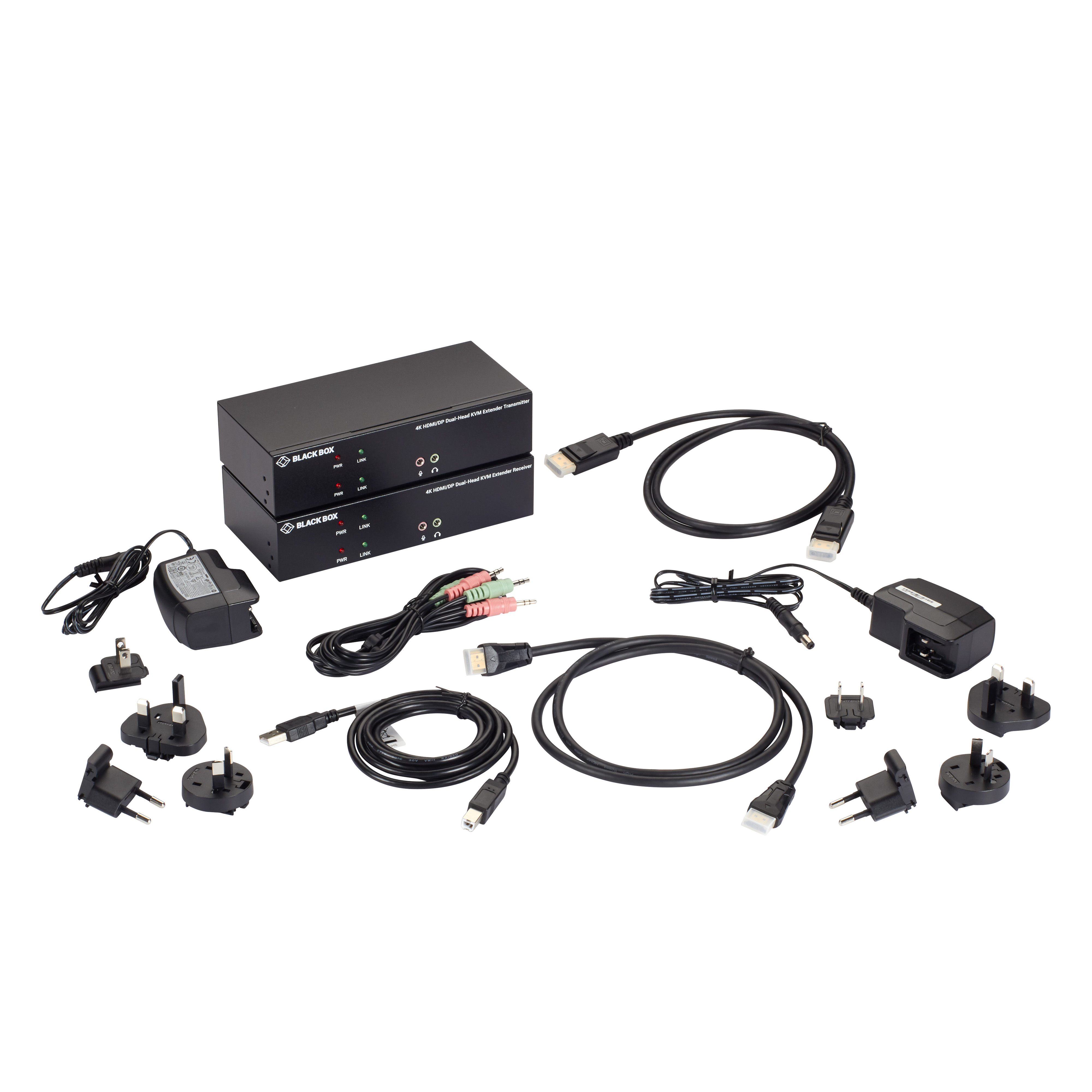

- (1) Transmitter
- (1) Receiver
- (2) 5V, 2A Power Supplies (Includes US, EU, AU & UK Plug types)
- (1) HDMI Cables 1.2m (4 ft.)
- (1) DisplayPort Cables 1.2m (4 ft.)
- (1) 3.5mm Audio Cable 1.8m (6 ft.)
- (1) USB-B to USB-A Cable 1.8m (6 ft.)
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
