#EMD200xPE-DP

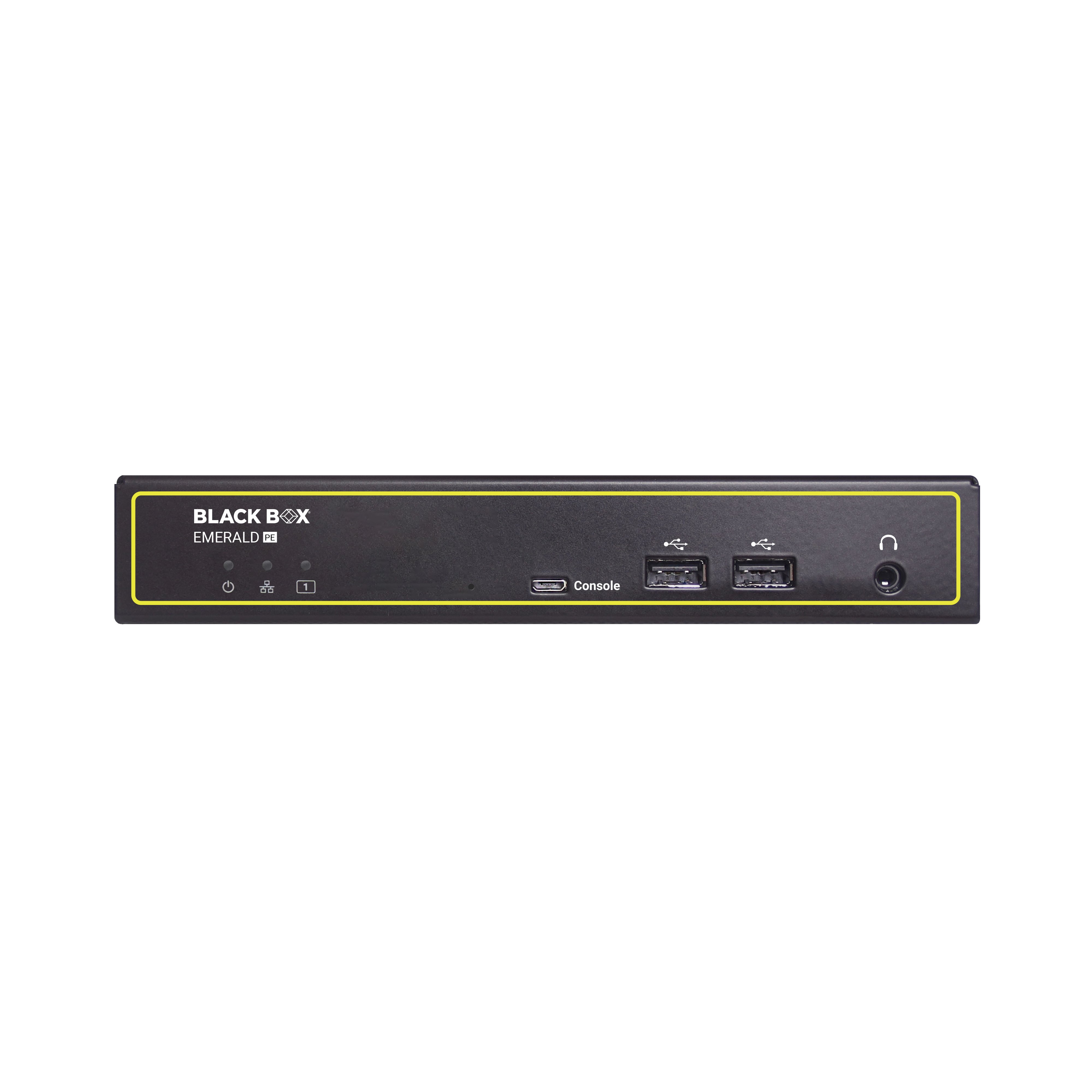

Emerald® PE KVM-over-IP - DisplayPort, USB 2.0, Audio, Dual Network Ports RJ45 and SFP
Full HD KVM extension and switching over IP, with pixel-perfect HD video, transparent USB 2.0, and virtual machine support
Product Features
- Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
- Pixel-perfect HD DisplayPort video up to 1920 x 1080
- Supports USB HID, transparent USB 2.0, and audio
- Manage bandwidth and user access, deploy new endpoints, update firmware, and more from the receiver’s OSD or Boxilla
- Compatible with existing KVM systems like DKM and Boxilla
Industry-Leading KVM
Emerald® PE gives users a seamless desktop experience anywhere on a TCP/IP network with the actual hardware stored in a corporate data center or in the cloud. Deploy PE on standard corporate networks and across WANs, even for media-rich applications, like video and photo editing.
Link TX and RX units in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple TX and RX units to an Emerald or IP matrix switch.
Start small with a point-to-point extension, or scale Emerald infinitely by adding endpoints, with no extra chassis or cards. PE supports up to 32 endpoints. Manage larger systems centrally with Boxilla®.
Easy Migration and Scaling
Scale access infinitely and gradually over an existing network infrastructure.
Outstanding Video Quality
Emerald PE supports pixel-perfect HD DisplayPort video with 1920 x 1080 resolutions, ideal for medical imaging and control rooms.
Virtualization Support
Emerald PE supports VM® and Microsoft®, HyperV®, using RDP 8.1 and RemoteFX.
Simple System Management
Manage bandwidth and user access, deploy new endpoints, update firmware, and more via the RX's OSD or Boxilla, a hardware-based management appliance with a user-friendly, browser-based GUI.
Fail-Safe Operation
Redundant network ports offer 24/7 operation if one network fails. Connect the endpoints via two alternative direct links, a direct link, and a network connection, or two independent networks.
Works with Other KVM Systems
Emerald works with the Emerald product family and these Black Box KVM product families:
- DKM proprietary, direct-connect KVM system
- Freedom II Multi-Monitor Switch with Glide and Switch technology
- ControlBridge, our system for one-touch, multisystem control
- Boxilla KVM Manager
EMD2000PE-DP-T
- (1) Emerald PE DisplayPort Single-Head Transmitter
- (1) Power Supply
- (1) Power Cord
- (1) USB Type A to B, M/M
- (1) Display Port Cables, M/M
- (1) Insert to reference BlackBox.com for resources
EMD2002PE-DP-T
- (1) Emerald PE DisplayPort Dual-Head Transmitter
- (1) Power Supply
- (1) Power Cord
- (1) USB Type A to B, M/M
- (2) Display Port Cables, M/M
- (1) Insert to reference BlackBox.com for resources
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
2 Year Double Diamond™ Warranty (Standard)
Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box.
Our Double Diamond Warranty* protects your Black Box® brand products from manufacturing and/or material defects.
The EMD2000PE-DP-R comes with a standard 2 Year Double Diamond Warranty*. During the warranty period, Black Box will repair or replace your damaged equipment at NO CHARGE!*
What’s more, we also have a 30-day return policy on most products. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package to receive a full refund.** Click here to find your local sales office to obtain a Return Authorization.
Extended Double Diamond Warranty.
Extend the warranty on select products or protect eligible previously purchased Black Box® brand items for an additional year - at just 10% of the original purchase price or for three years for only 20% of the purchase price.
* Warranty subject to certain exclusions and limitations. Click here to view our full terms and conditions.
** Returns contingent upon specific exclusions and limitations. Click here to view our full return policy.
