#ACU5600A-MM

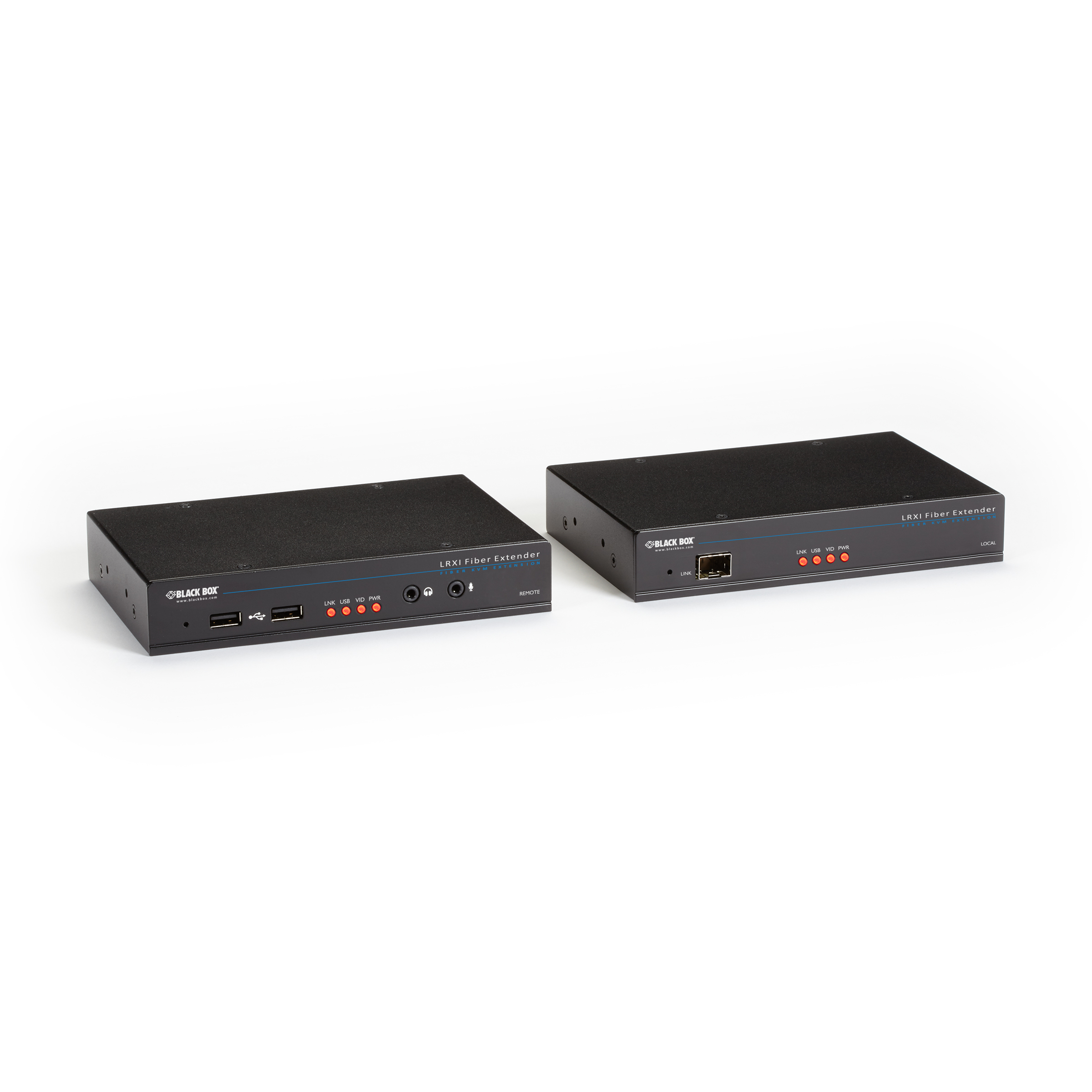

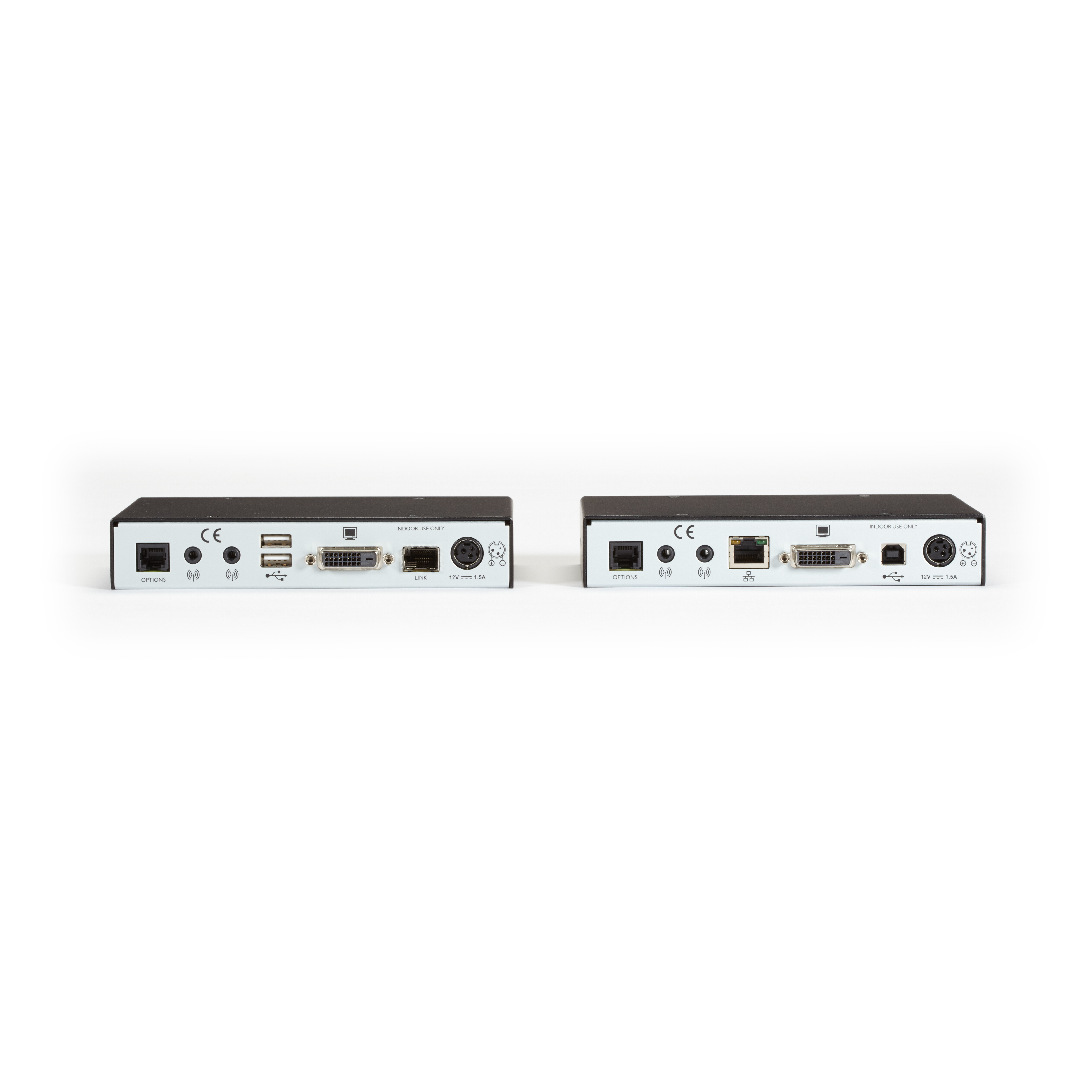

LRXI KVM Extender - DVI-D, USB 2.0, Single Access, Multimode Fiber
Extend DVI-D, USB 2.0, RS-232, and audio signals over MultiMode Fiber Cable.
Product Features
- Dual Link Resolutions up to 2560 x 1600 @60Hz
- MultiMode Fiber
- Single Access
- Distance depends on the fiber. Transmit up to 150 meters over OM2 fiber or up to 400 meters for OM4 fiber.
- USB 2.0 Hi Speed for mass Storage
- Birdirectional Analog audio
- Locate critical computing hardware in a secure environment.
- Distance depends on the fiber. Transmit up to 150 meters over OM2 fiber or up to 400 meters for OM4 fiber.
- Connect USB 2.0 mass storage devices, keyboards, mice, touch screens, and other peripherals.
- Dual-link DVI video extension is lossless with very low latency.
- Provides resolutions up to 2560 x 1600 @60 Hz.
- Supports bidirectional analog audio (line in/out for microphones and headphones).
- Extend RS-232 signals with RTS/CTS flow control.
- Robust metal case resists shock and vibrations.
KVM Extender for DVI, USB 2.0, RS-232, and audio signals over MultiMode Fiber Cable. Connect USB 2.0 mass storage devices, keyboards, mice, touch screens, and other peripherals. Dual-link DVI video extension is lossless with very low latency. Provides resolutions up to 2560 x 1600 @60 Hz. Supports bidirectional analog audio (line in/out for microphones and headphones). Extend RS-232 signals with RTS/CTS flow control. Robust metal case resists shock and vibrations.
- (1) Transmitter
- (1) Receiver
- (2) SFP Modules (Multimode)
- (2) 12VDC, 1.5A Desktop Power Supply with US Power Cords
- (1) Combined Dual-Link DVI-D and USB Cable (2 m)
- (2) 3.5 mm Audio Cables (3 m)
- (1) Safety instructions
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
